Reliable Power Meters Supplementary Help-Desk: Understanding Options

System Design Guide for a
Reliable Power Meters'
Power Recorder

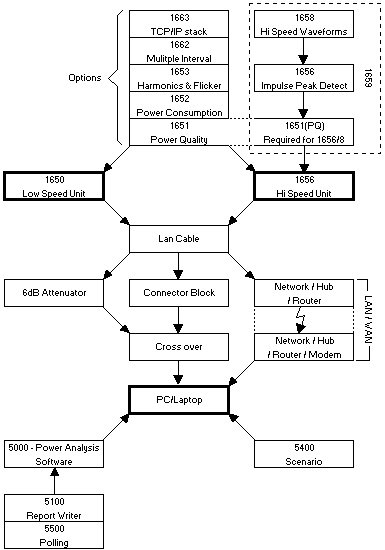

A Reliable Power Meters' Power Recorder is a complex device with many optional features available. Below is a system design guide to help understand "how it all fits together".

soft options

A few notes:

Options 1651, 1652, 1653, 1662, & 1663 can fit into both low and high speed units.
Options 1656 needs 1651
Options 1658 needs 1656 & 1651 - available as a group as option 1659
The LAN/WAN can consist of a single network hub, a full blown LAN or WAN, or dedicated WAN system comprising of a dial-up router (RPM side) and modem (PC side).
If on a LAN, it is highly possible the option 1663 (TCP/IP Stack) will be required. This option is required for a dedicated WAN.

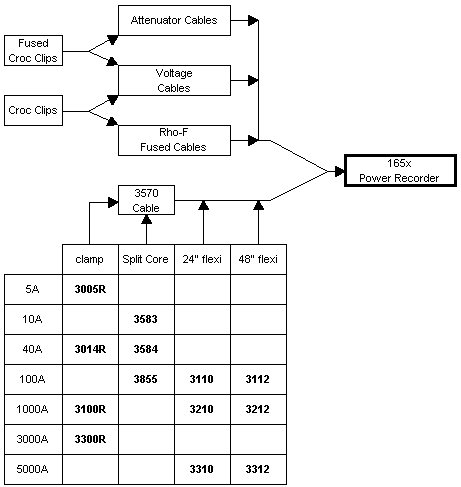

Below is the options available for connecting to and measuring voltage and current.

input options

If there are any questions please email me
